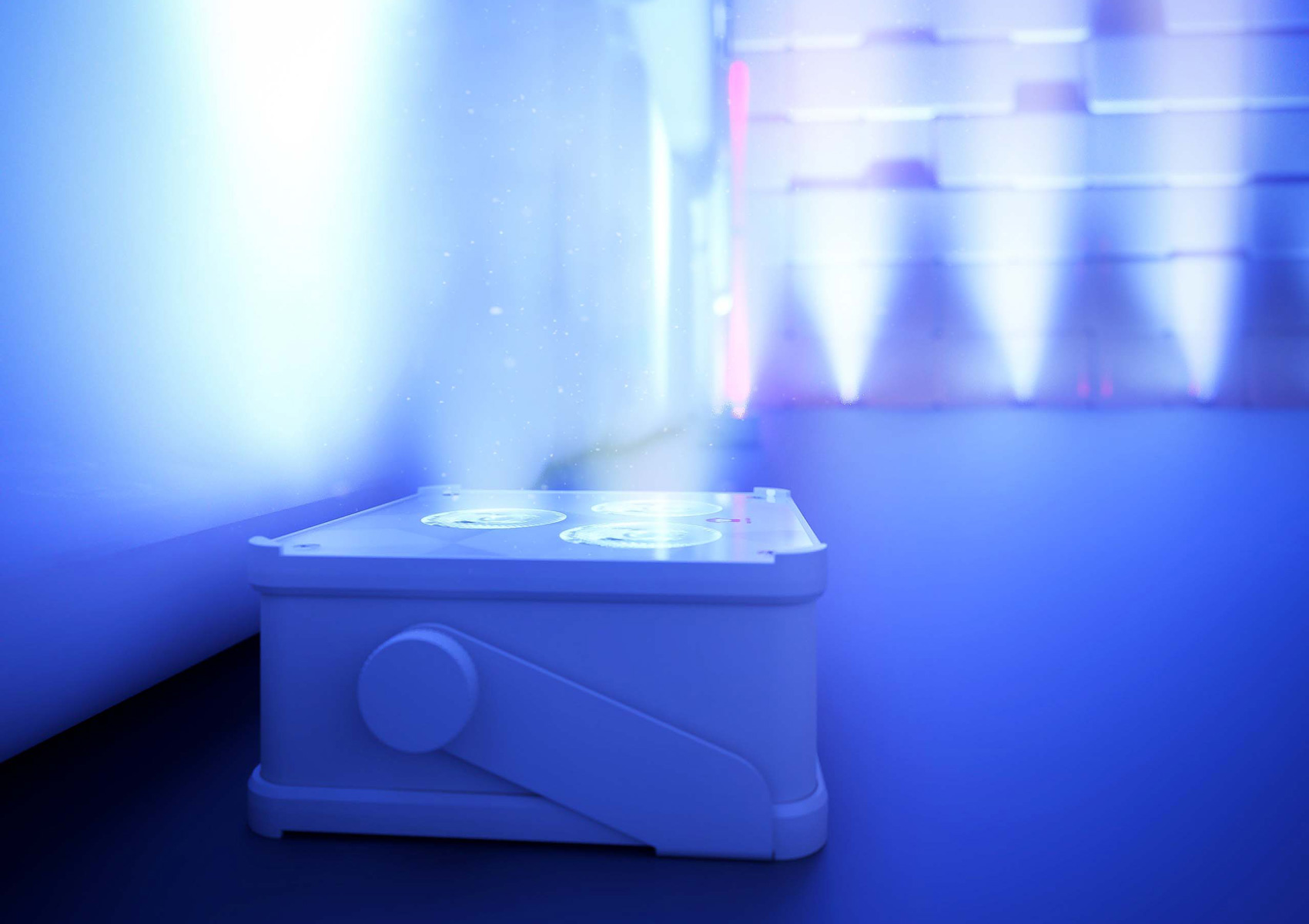

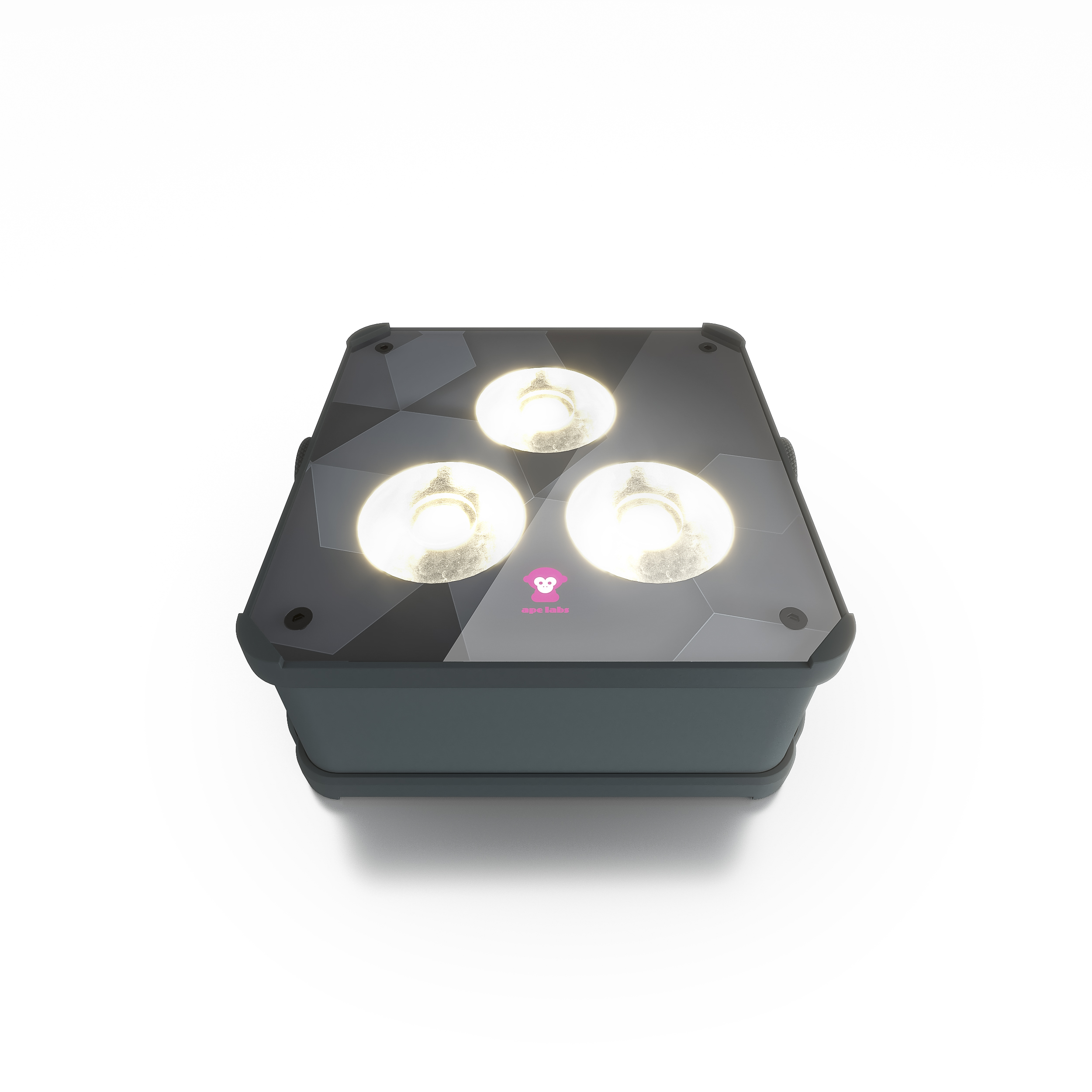

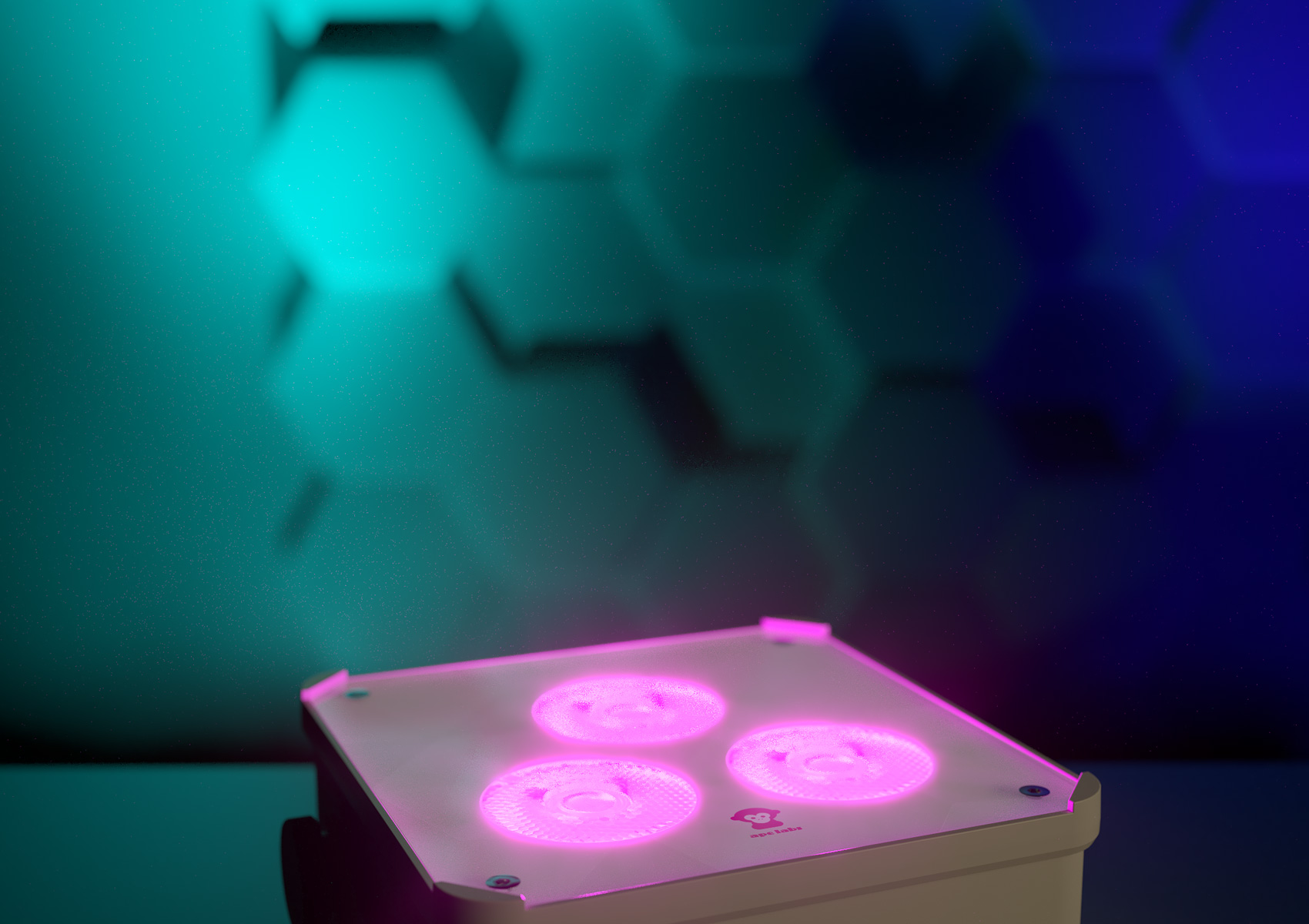

ApeLight Maxi V2
The ApeLight Maxi V2 is the standard when it comes to ambient light, using 3 powerful LED bulbs it is perfect for all your dynamic and dramatic lighting needs. Easy to use, but at the same time also meets all the requirements for professional users in the event sector. The ApeLight V2 is available as a mini or maxi variant. With built-in rechargeable battery for at least 14 hours of running time or power cable directly for the socket.

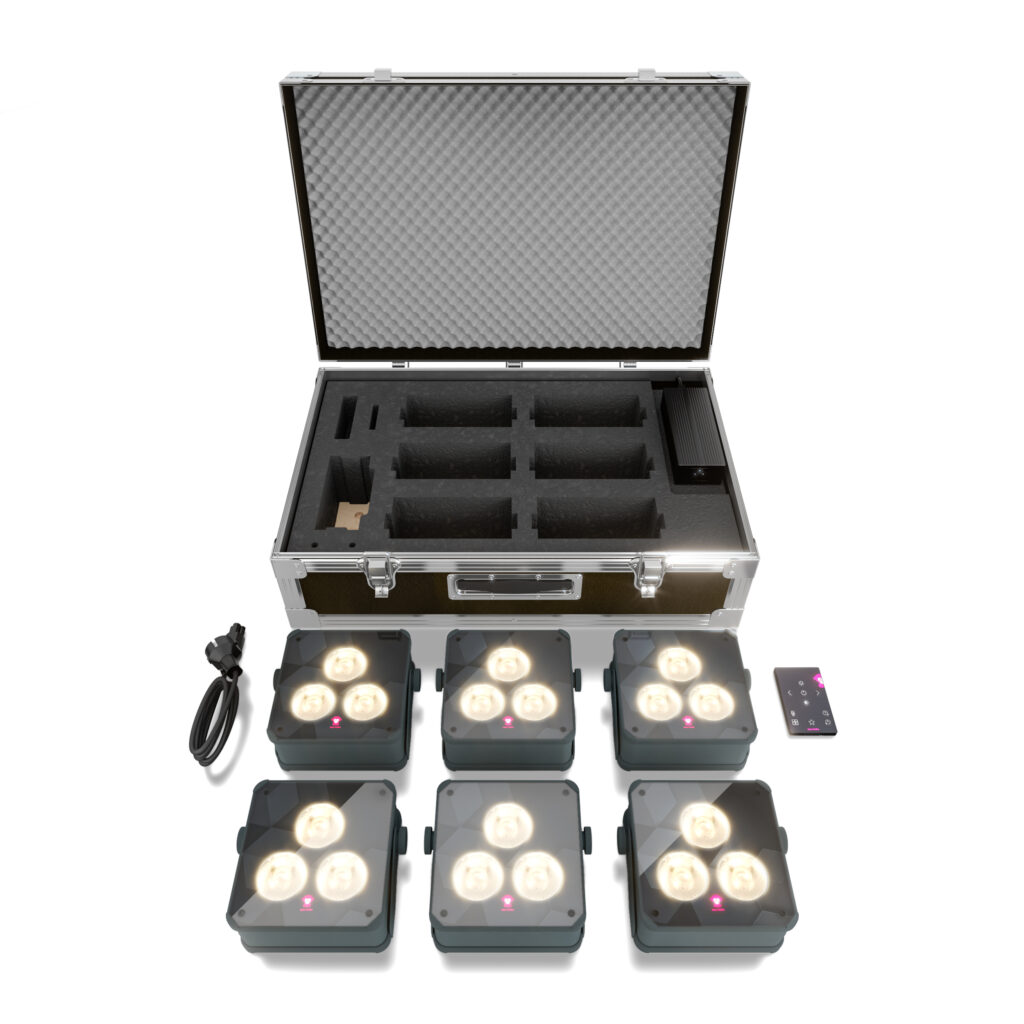

Lighting modules can be purchased in tour packs of 6 units housed in either soft bags, pelicases, or flightcases. Flightcases and pelicases are great for protecting lighting equipment on-the-go and both have capability for automatic in-case charging from a single power source. Additionally lights can be sold in single units as well as twin and quad packs; perfect for single-site users.
Ape Labs products are available in the UK through LSA Projects Ltd, please contact Sean Smyth by email or phone (01376 501199) for further information and ordering.
Diverse Uses

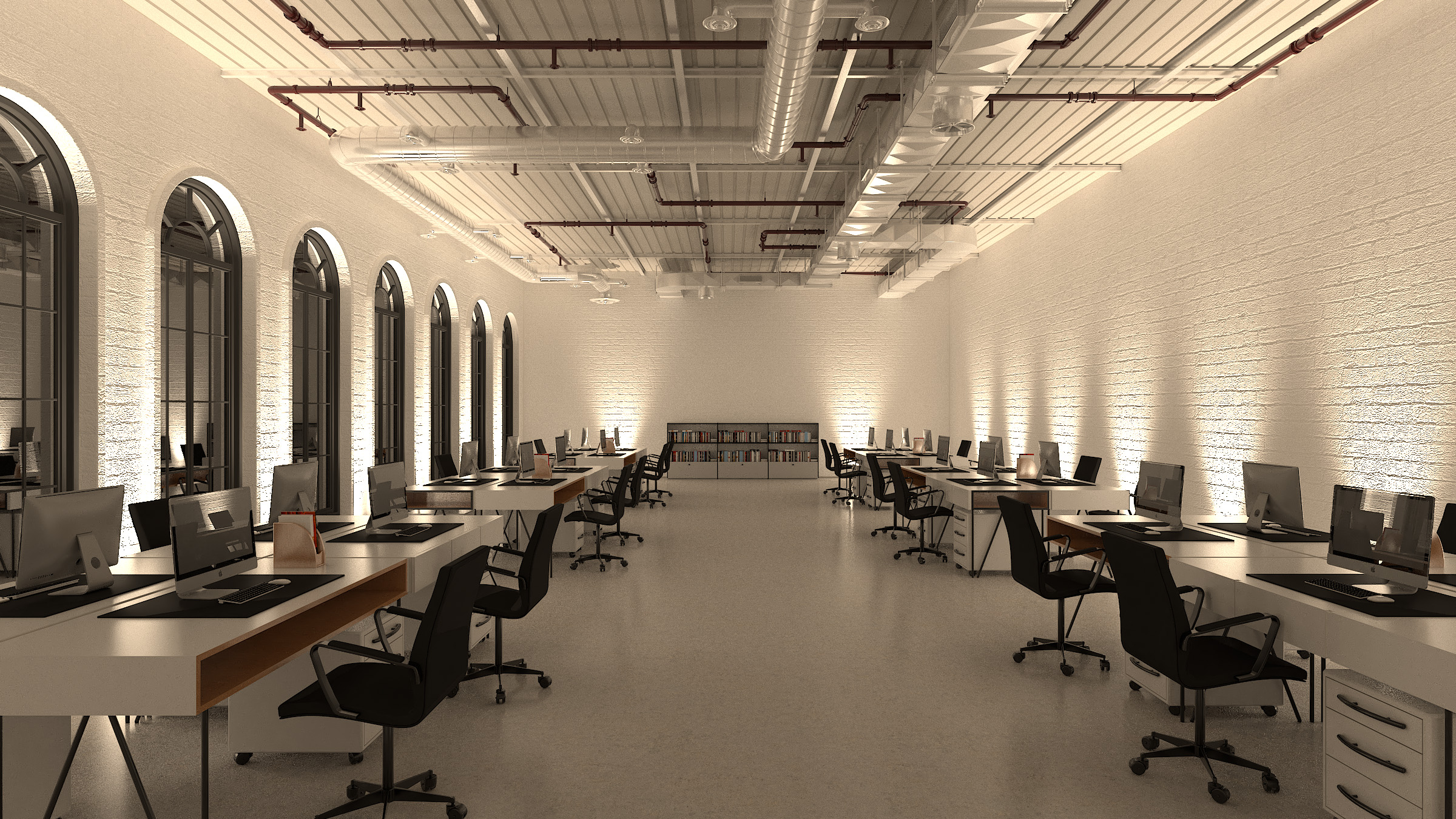

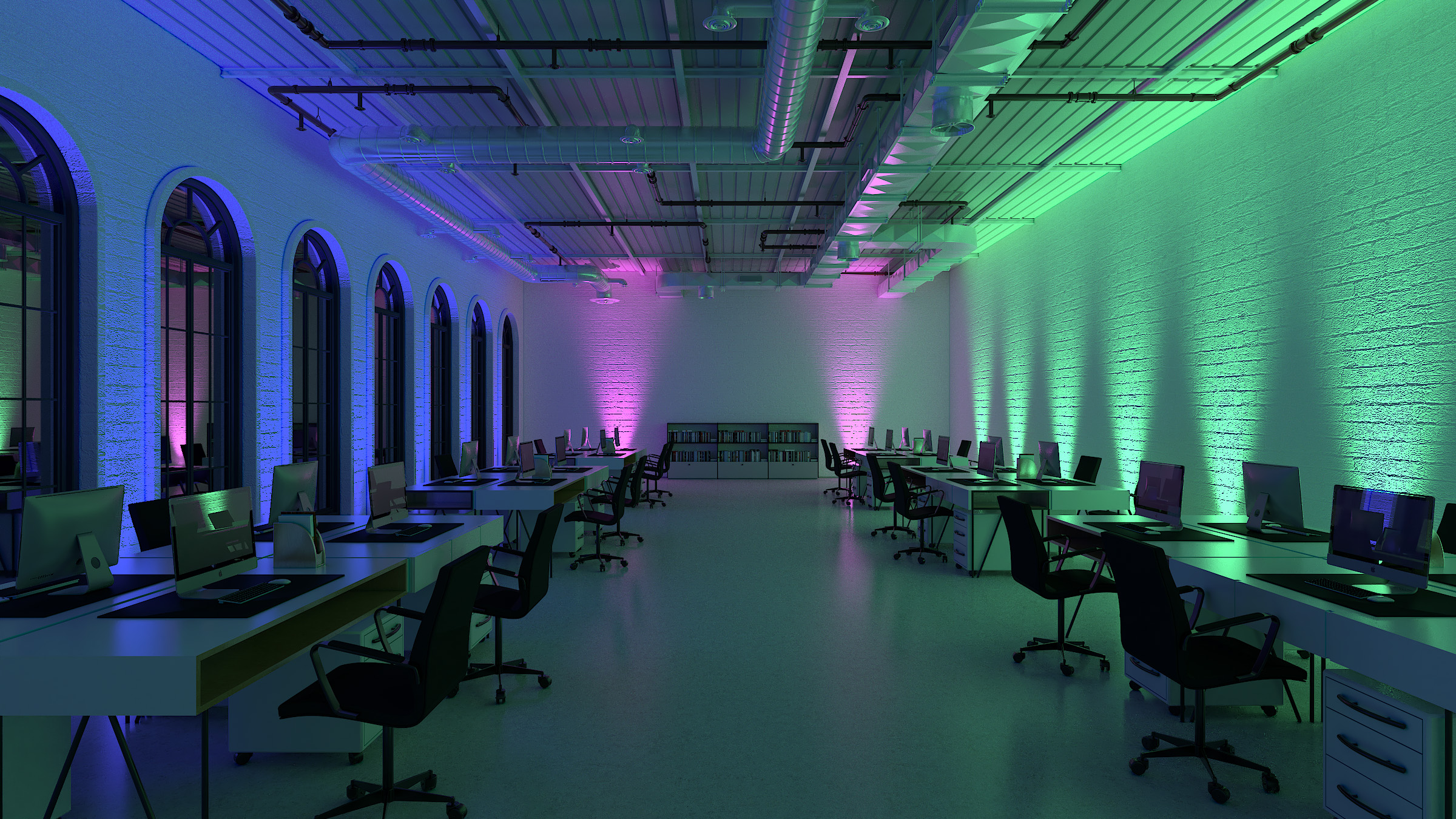

The Apelight Maxi V2 can be used in almost every area. The 45 watt LED power and 15 degree LED optics enable a wide range of applications.
All devices are IP65 waterproof. LED optics are also available in different beam angles.
Long Battery Life
The ApeLight Maxi V2 shines for at least 14 hours – at full brightness. Whether static colors or programs. 100% reliable.
Easy Handling
All Ape Labs lamps can be controlled via IOS & Android app in connection with “Connect” or the remote control. All lamps can also be controlled via wireless DMX for professional users. In addition, all wireless connections can be secured against unauthorized access by the pairing function. With the backup mode, colors can also be set using the button on the lamp.
- LED lamp for indoor & outdoor IP65
- With built-in rechargeable battery for 14 hours or mains power cable. Depending on the product selection
- Variant with mains power cable also perfectly suited as a fixed installation for outdoor use. Suitable for outdoor events, gastronomy or in the home garden

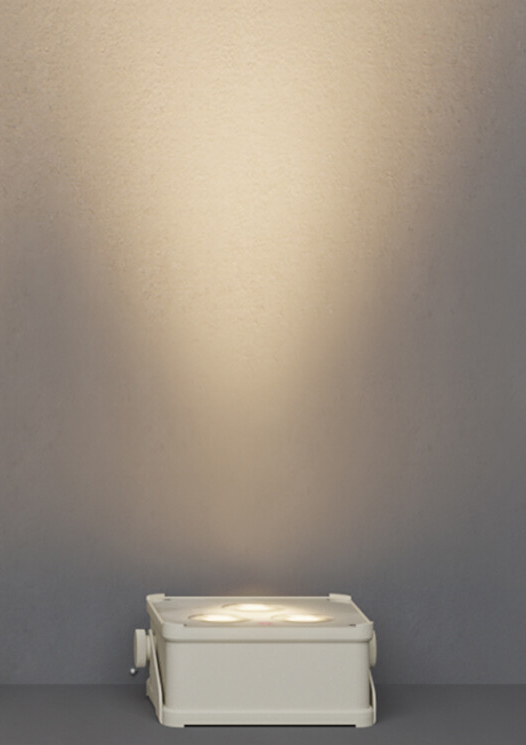

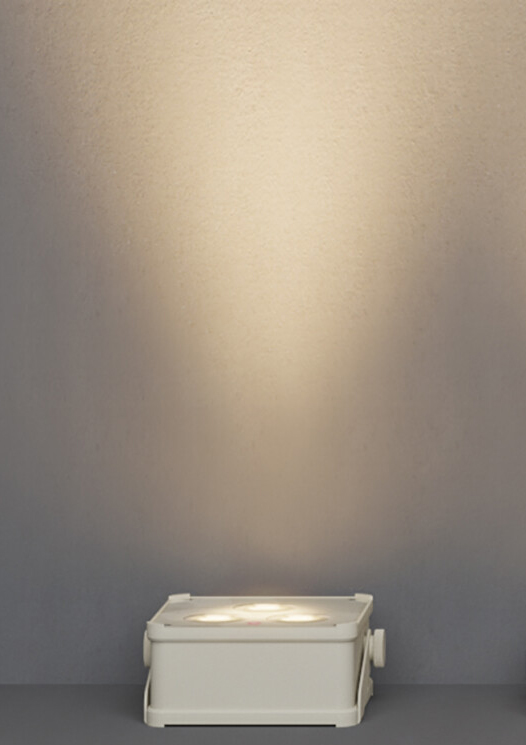

- Powerful lamp for illuminating high walls and large rooms
- Can be used standing or bracket mounted
- Battery operation or continuous operation possible on mains power with a power pack
- Made in Germany

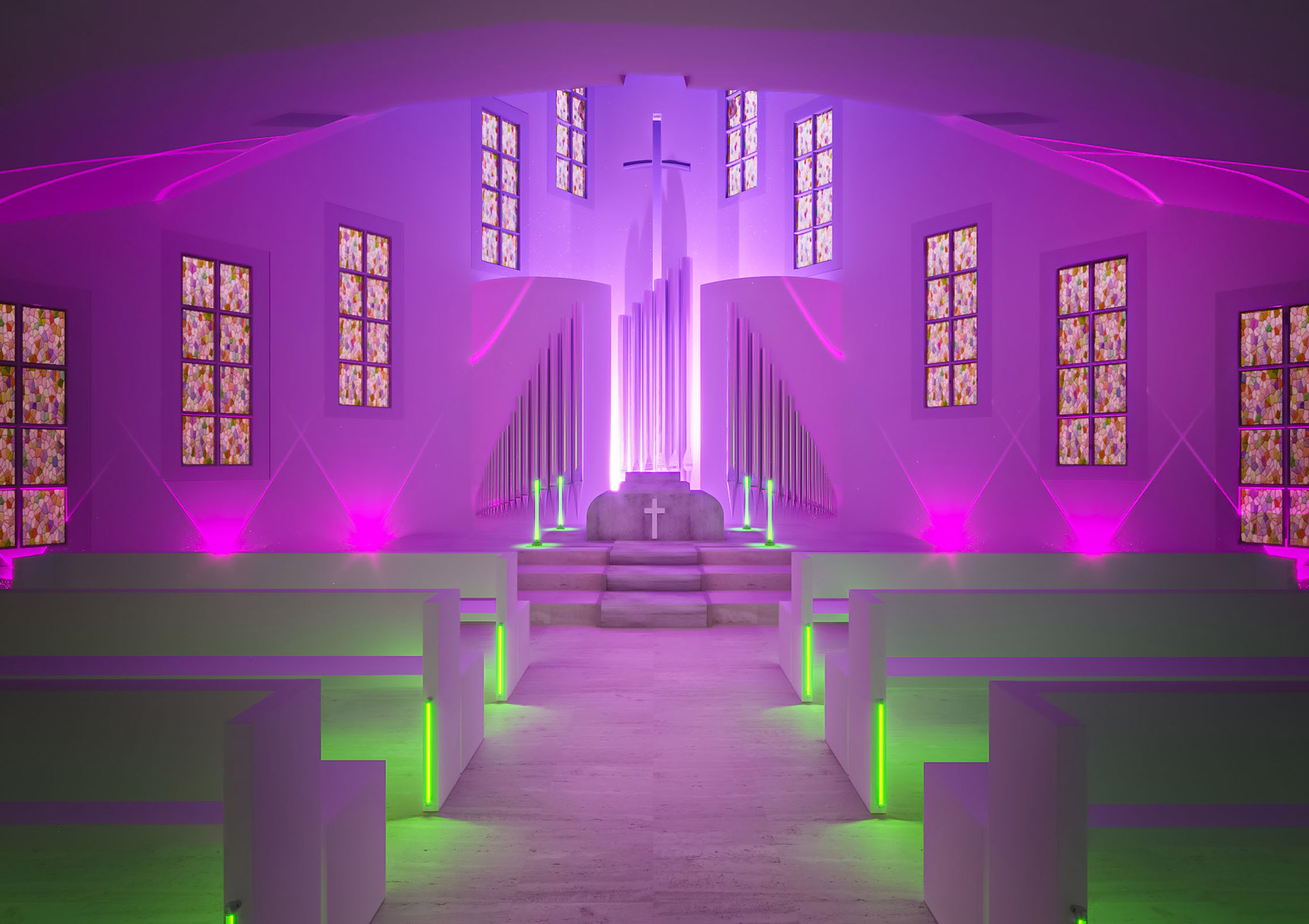

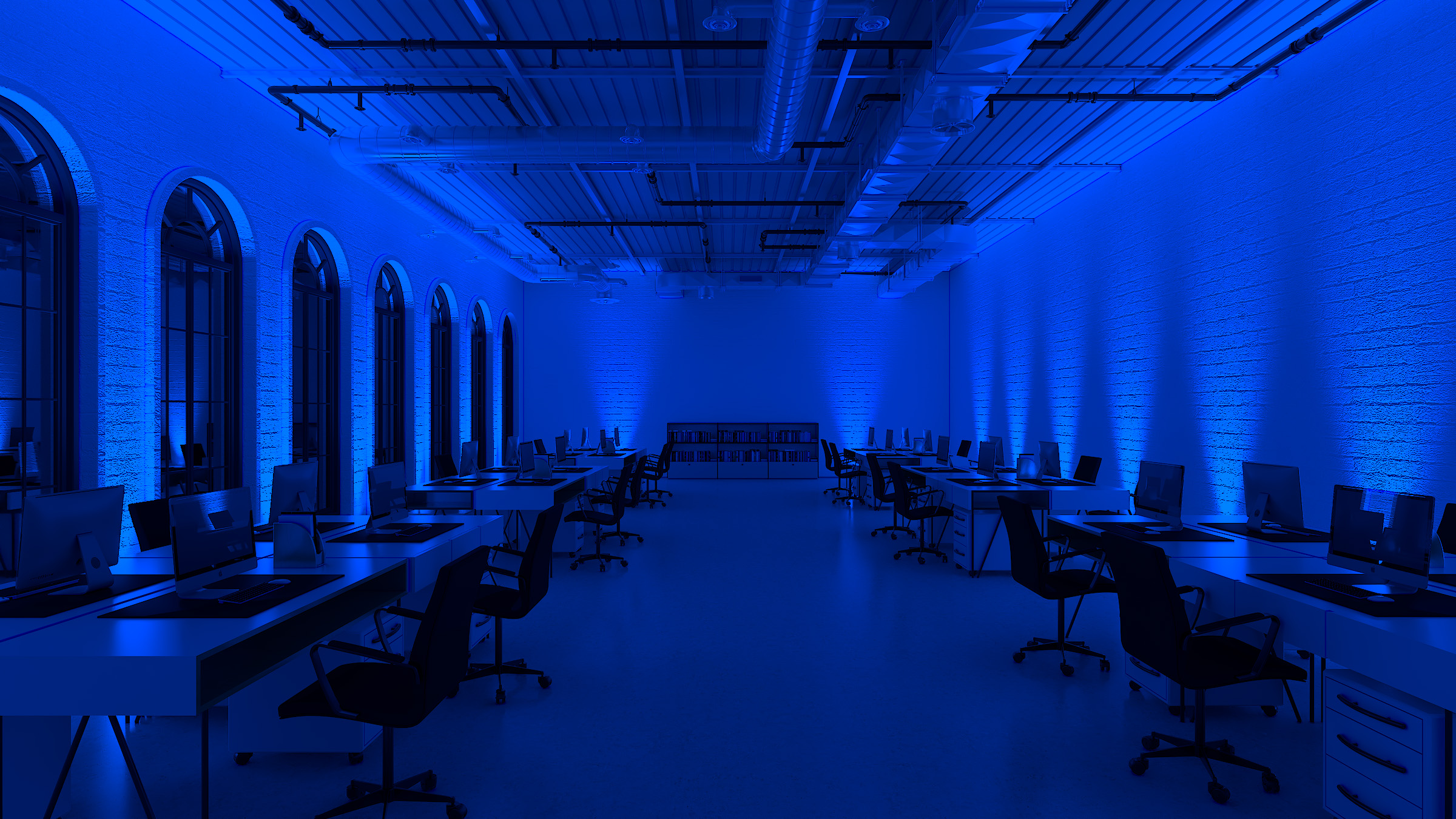

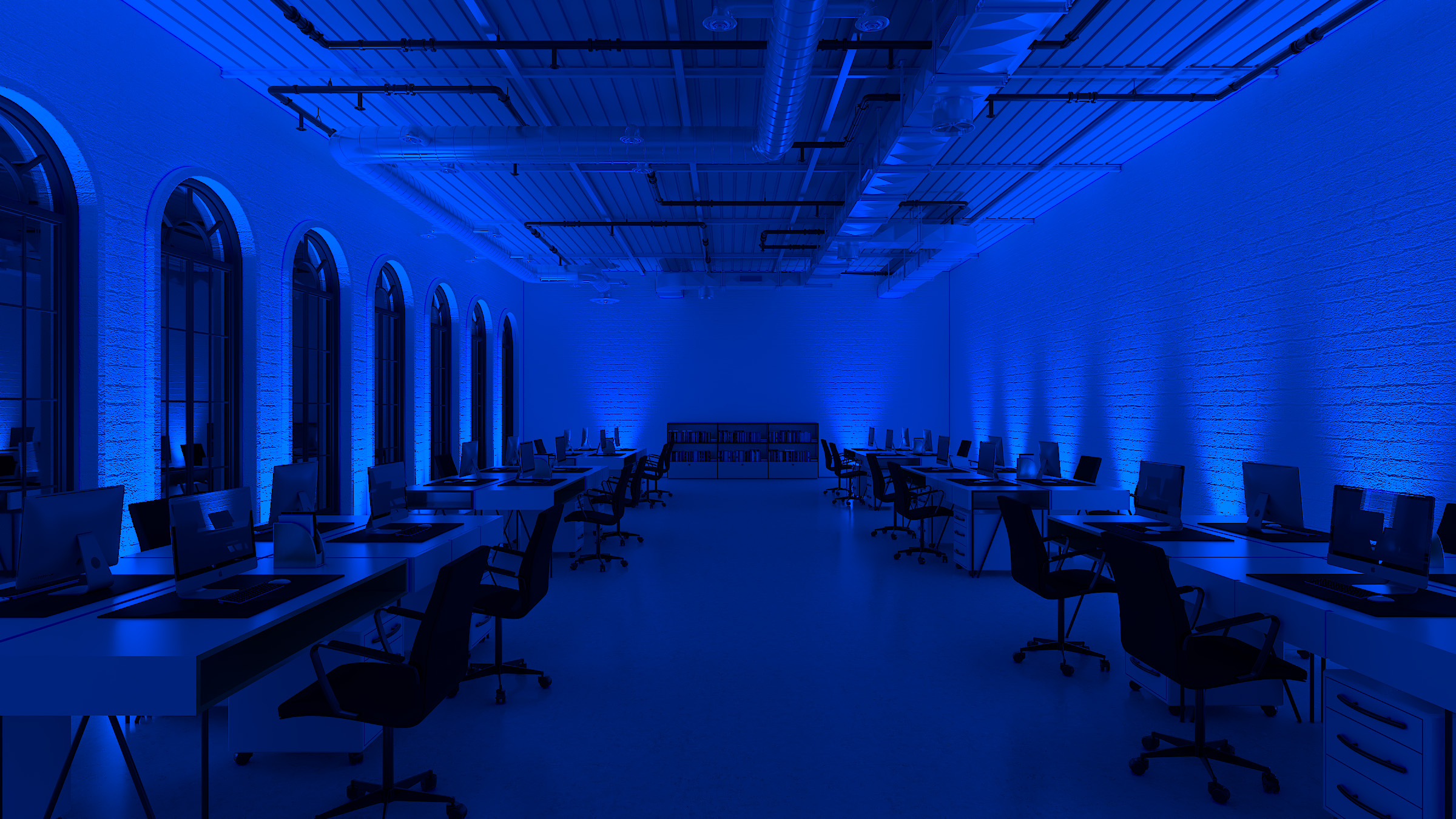

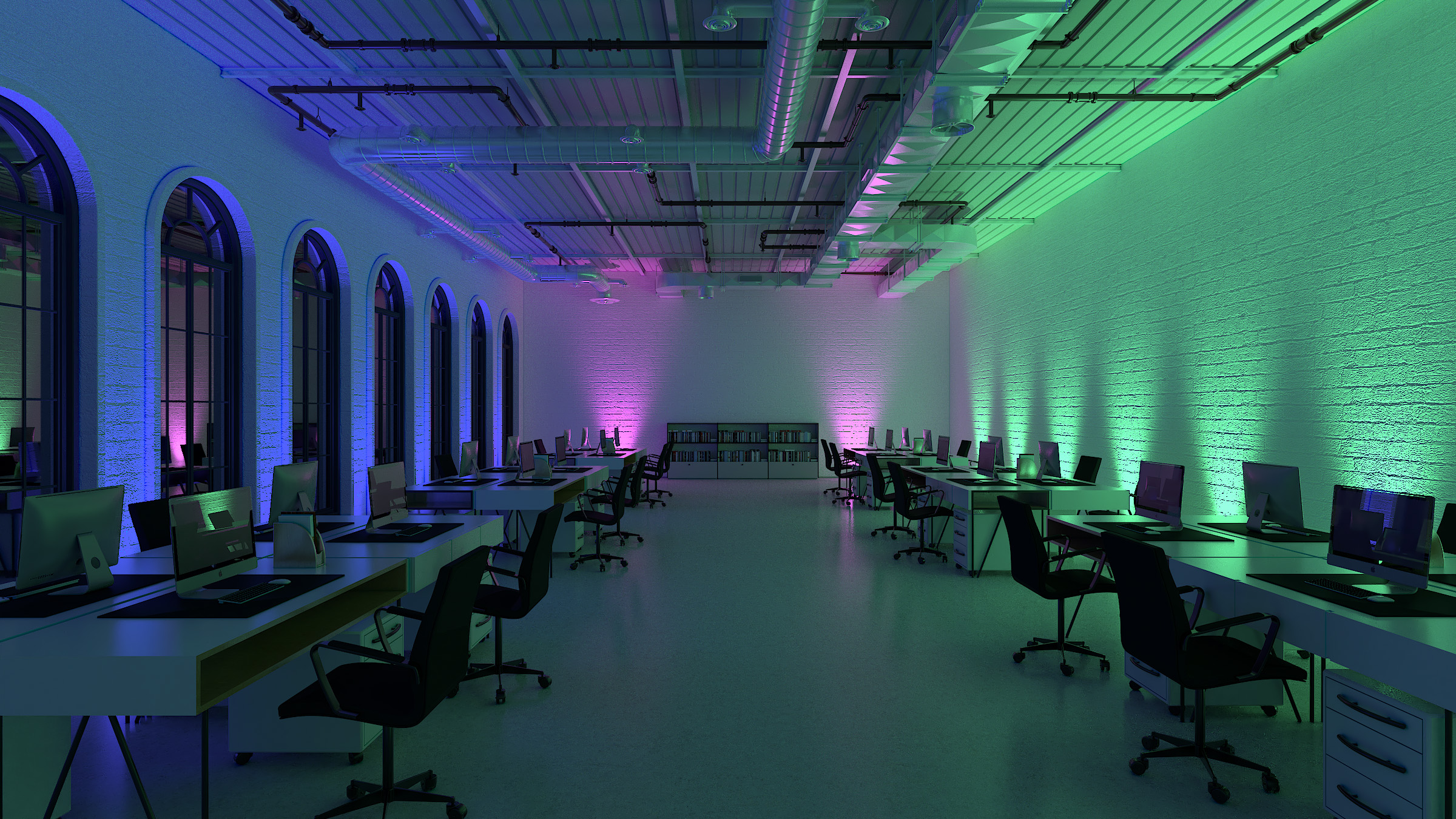

- Suitable for a variety of applications, such as ambient lighting, uplighting, mobile path lighting, facade lighting, profile lighting, dance floor lighting, stage lighting and catering lighting
- Housing made of stainless steel. Stable, robust and durable
- 3 x 15 watt LEDs

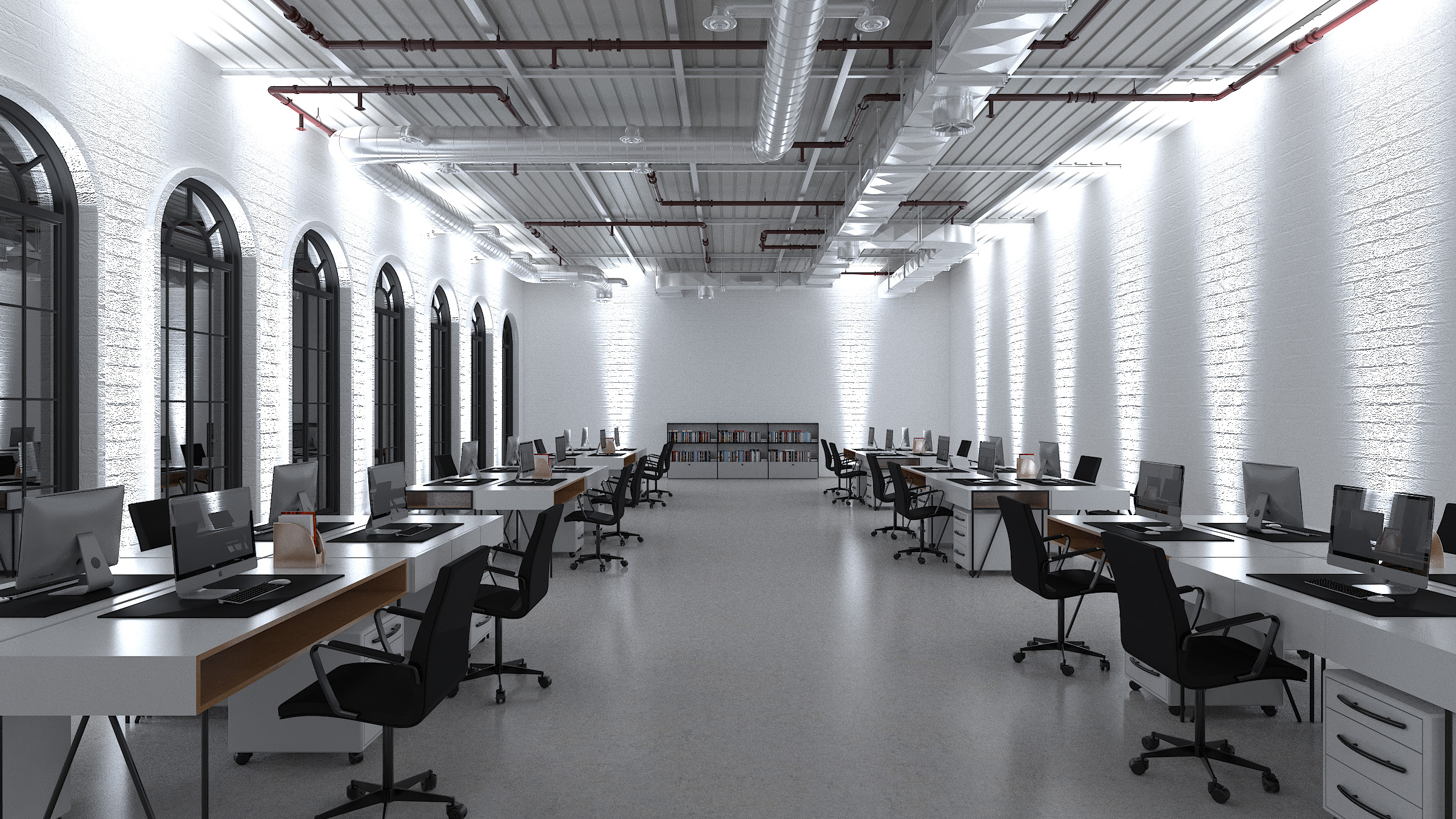

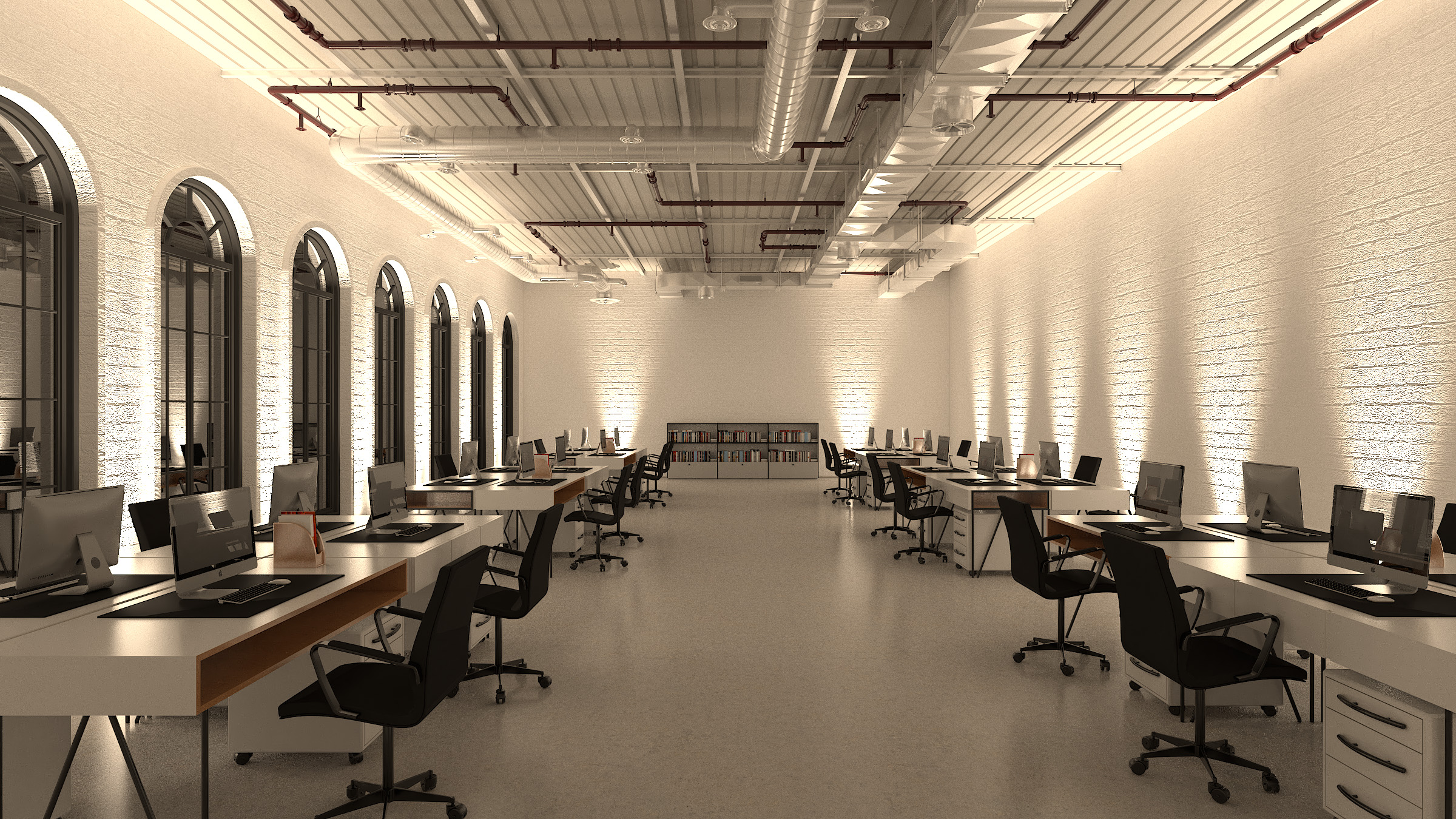

- Built-in LED optics 3 x 15° beam angle. The following accessory optics are available: 10°, 15°, 25°, 45°
- Even with the battery version, continuous operation is possible with the external power pack. Lamp does not turn off automatically when external power supply is interrupted
- Controllable via remote control, smartphone app, wireless DMX, Smarthome KNX
- PWM (LED refresh rate) adjustable via smartphone app (500Hz to 4000Hz)
- fanless
- This item is used to expand existing sets. Does not include any accessories
- LED type: RGB WW

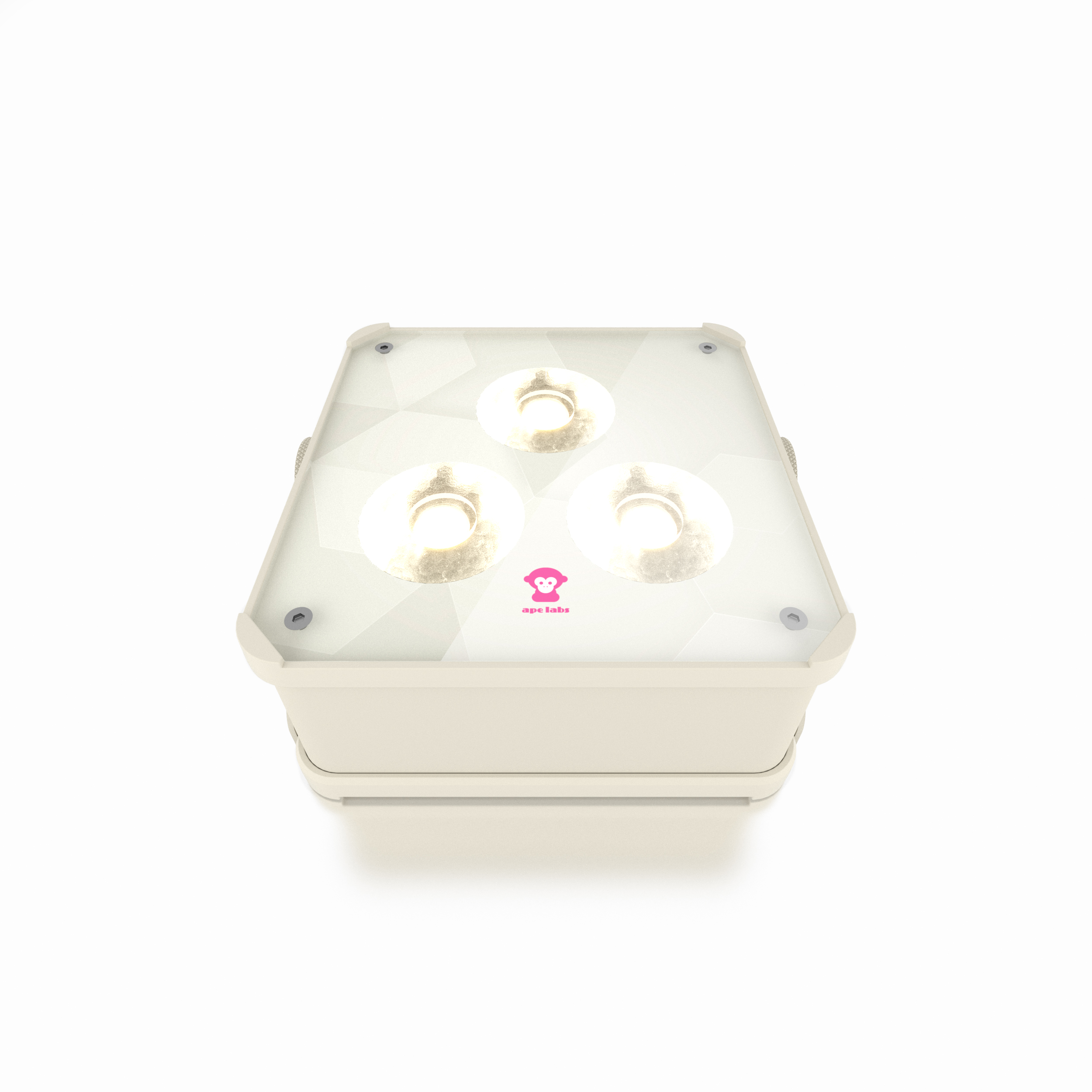

- Available in anthracite gray or cream white
| Dimension | 13.7 x 13.7 x 6.5 cm |
|---|---|
| Weight | 1.7kg |
| Construction | Stainless Steel |
| LED type | RGB WW |
| bulbs | 3 x LED quad power |
| wavelength red | 622.5nm |
| wavelength green | 522.5nm |
| wavelength blue | 457.5nm |
| Color temperature warm white | 2700K |
| Color temperature neutral white | 5500K |
| Color rendering in CRI (Ra) | 90 |
| PWM (Pulse Width Modulation) | 500Hz – 4000Hz |
| flicker free | Yes |
| Dimmable | Yes |
| Illuminance LUX | Available on request |
| Total lamp luminous flux | 1635 |
Current in battery mode
- Lamp charging voltage 16 – 19 V
- Lamp operating voltage 12 V
- Battery type in lamp Ni-MH 54 Wh
- Current consumption of the lamp when charging 1 A
Electricity in mains operation
- Lamp operating voltage 12 V
- Current consumption of the lamp 0.8 A
- Mains input voltage 100-240 VAC – 50/60Hz
- Power consumption 9 watts
- Cable length 180 cm
- Safety plug connector
- UV resistant for outdoor use
Control/Operation
- 4 groups management via remote control and smartphone app or 4 DMX universes
- Automatic signal repeater from lamp to lamp
- Remote control Art. 8179 black or Art. 7865 white (approx. 50 meter range)

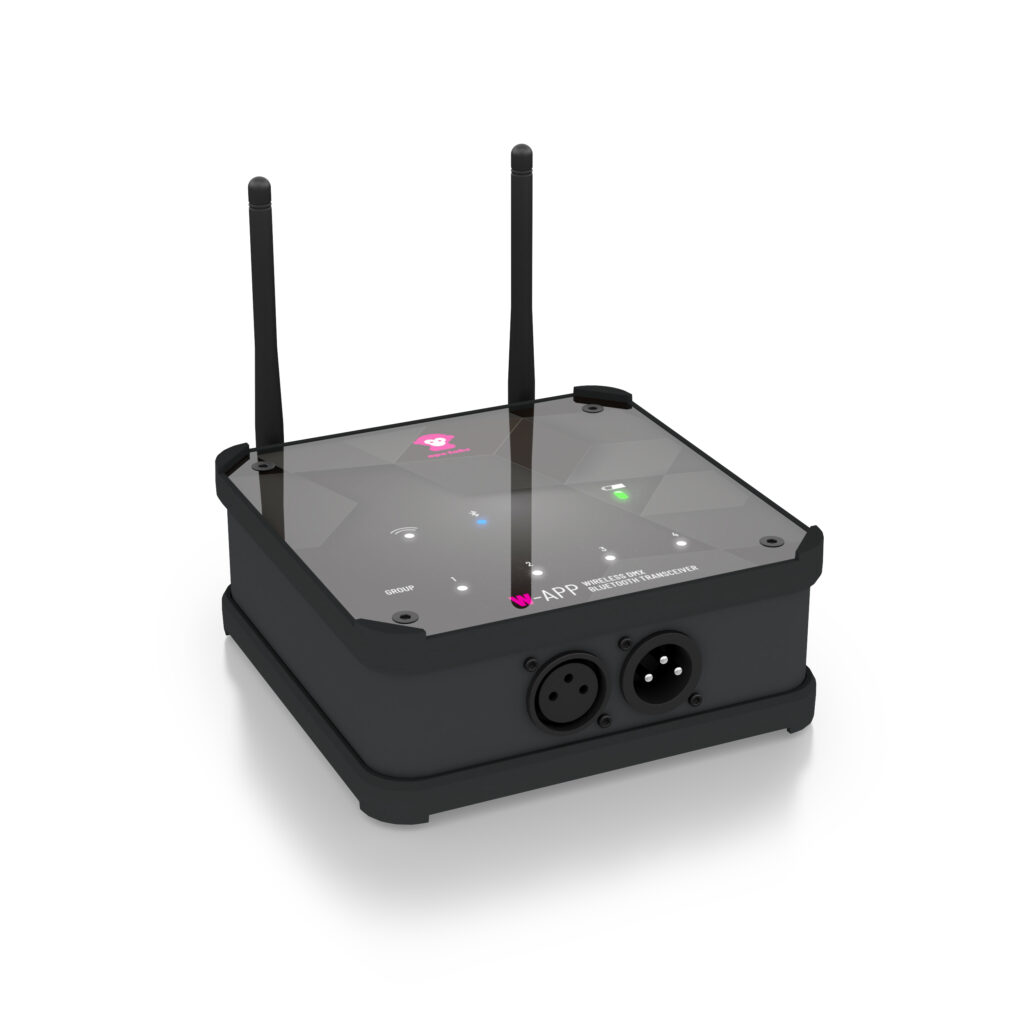

- Smartphone app for IOS & Android via CONNECT Art. 8151 Creme or Art. 8152 Gray (approx. 1200 meter range)
- Wireless DMX per CONNECT Art. 8151 Cream or Art. 8152 Gray (range approx. 1200 meters)
- KNX per CONNECT Art. 8151 Creme or Art. 8152 Gray (approx. 1200 meter range)
DMX
- 4C mode 8 bits
- 7 C mode 8 bits
- 8C mode 16 bits
Wireless
- 2.4GHz (2400-2485MHz)
- Max. 20dBm ~ 100mW (EIRP*)
Housing
- IP 65 waterproof
- Bracket for adjusting the angle of attack or for mounting mounting
- Bracket mounting hole diameter: 10.3mm
- Acrylic glass surface, scratch-resistant, made of Optial HC material
More Functions
- music fashion
- Full flexibility in color, brightness, effects and programs
- PWM (LED refresh rate) adjustable between 500Hz and 4000Hz
- Pairing (coupling) of all ape labs relevant devices for a secure and stable wireless connection
- Save app profile once and use it on all smartphones and tablets at the same time (cloud-based saving of personal lamp settings
- Free software updates for lamps, CONNECT and smartphone apps
- Regular software updates with new features and ideas from the Ape Labs community
Customisation
In addition to the customisable programs build into the ApeLight Maxi V2 units are now available with a selection of new housing colour schemes.
The main housing, faces, and rubber trims can all be supplied with any combination of the new finishes. In addition to the classic fine-structure and matt black combination there are 9 more colours to choose from. The range includes both traditional and modern styles to co-ordinate with any set-up. Multiple housing kits can be purchased to make your lights as versatile as your playlist.
APELight Mini V2
- Compact LED Lamp suitable for ambiant and decorative lighting
- IP65 rated for indoor and outdoor wireless use
- Up to 10 hours battery life on a single charge
- Sets of up to 12 matching lights in perfect-fit touring cases and bags
- Functionality for in-case charging
- Available in styles to fit most accessory sets as well as controller units and lighting models
- Wireless Bluetooth DMX transciever and central transmitter station
- Secure wireless connection for up (almost) unlimited lamps in 4 defined ‘universes’ within 1,200m
- Up to 50 hours wireless battery life with optional continuous power supply
